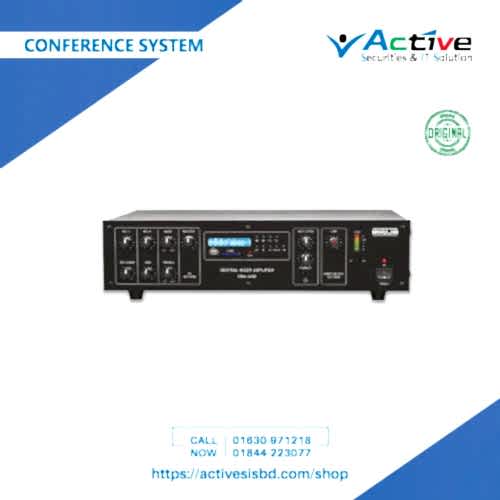

- AHUJA Digital Melbet System CMA 5400 Central Amplifier
- ৳ 36498
- Call Us Now 01630971218
Specification:
CMA-5400 50 WATTS Central Mixer Amplifier Highly sensitive 18.5" (47cm) long gooseneck microphone for comfortable sharing by two delegates. Bright and uniform band LED indicator. Chairman Rugged and compact die-cast aluminum base for better stability of Chairman Adjustable headphone output available from each Chairman Automatic Mic Off feature in Delegate units which is selectable through a switch in the Central Amplifier. Chairman Unit has Priority Switch. Melbet Amplifier has a digital recorder for recording the proceedings. Also it can playback the pre-recorded messages. Switchable send Three Mic inputs and one Aux input for various user applications. 50W PA Amplifier for adequate sound reinforcement. Headphone output provided in Central Amplifier for monitoring purposes. AC Mains & 24V DC operation. Central Amplifier is 19" rack-mountable. Central Amplifier has the facility of feeding two independent groups of Delegate Units as required in large conference setups. Conference System can be installed in a bus bar arrangement by using Junction Boxes CB-45.
CMA-5400 50 WATTS Central Mixer Amplifier Highly sensitive 18.5" (47cm) long gooseneck microphone for comfortable sharing by two delegates. Bright and uniform band LED indicator. Chairman Rugged and compact die-cast aluminum base for better stability of Chairman Adjustable headphone output available from each Chairman Automatic Mic Off feature in Delegate units which is selectable through a switch in the Central Amplifier. Chairman Unit has Priority Switch. Melbet Amplifier has a digital recorder for recording the proceedings. Also it can playback the pre-recorded messages. Switchable send Three Mic inputs and one Aux input for various user applications. 50W PA Amplifier for adequate sound reinforcement. Headphone output provided in Central Amplifier for monitoring purposes. AC Mains & 24V DC operation. Central Amplifier is 19" rack-mountable. Central Amplifier has the facility of feeding two independent groups of Delegate Units as required in large conference setups. Conference System can be installed in a bus bar arrangement by using Junction Boxes CB-45.
Details Specifications:
Line Melbet 1 17.5V DC; -34dBV (20mV)
Melbet Output 2 17.5V DC; -34dBV (20mV)
Power Output 50W RMS at 2% THD, 90W Melbet
Inputs 3×Mic 0.65mV7kΩ, 1×Aux 100mV/470kΩ
Frequency Response 60-14,000Hz (± 3dB)
S/N Ratio > 60dB
Tone Melbet Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
Preamp Output 200mV/600Ω
Line Output 1V/1kΩ
Send Output 200mV/600Ω
Return Input 200mV/10kΩ
Speaker Melbet 4Ω, 8Ω, 16Ω, 70V & 100V
Power Requirement AC: 220-240V, 50/60Hz, DC: 24V Melbet Car Battery)
Power Consumption 250VA
Protections AC Melbet 1×3 Amp, DC Fuse 2×10 Amp.
Dimensions Melbet × H110× D325 mm
Weight 10.50kg
